Coal Mining

Feeder Breaker

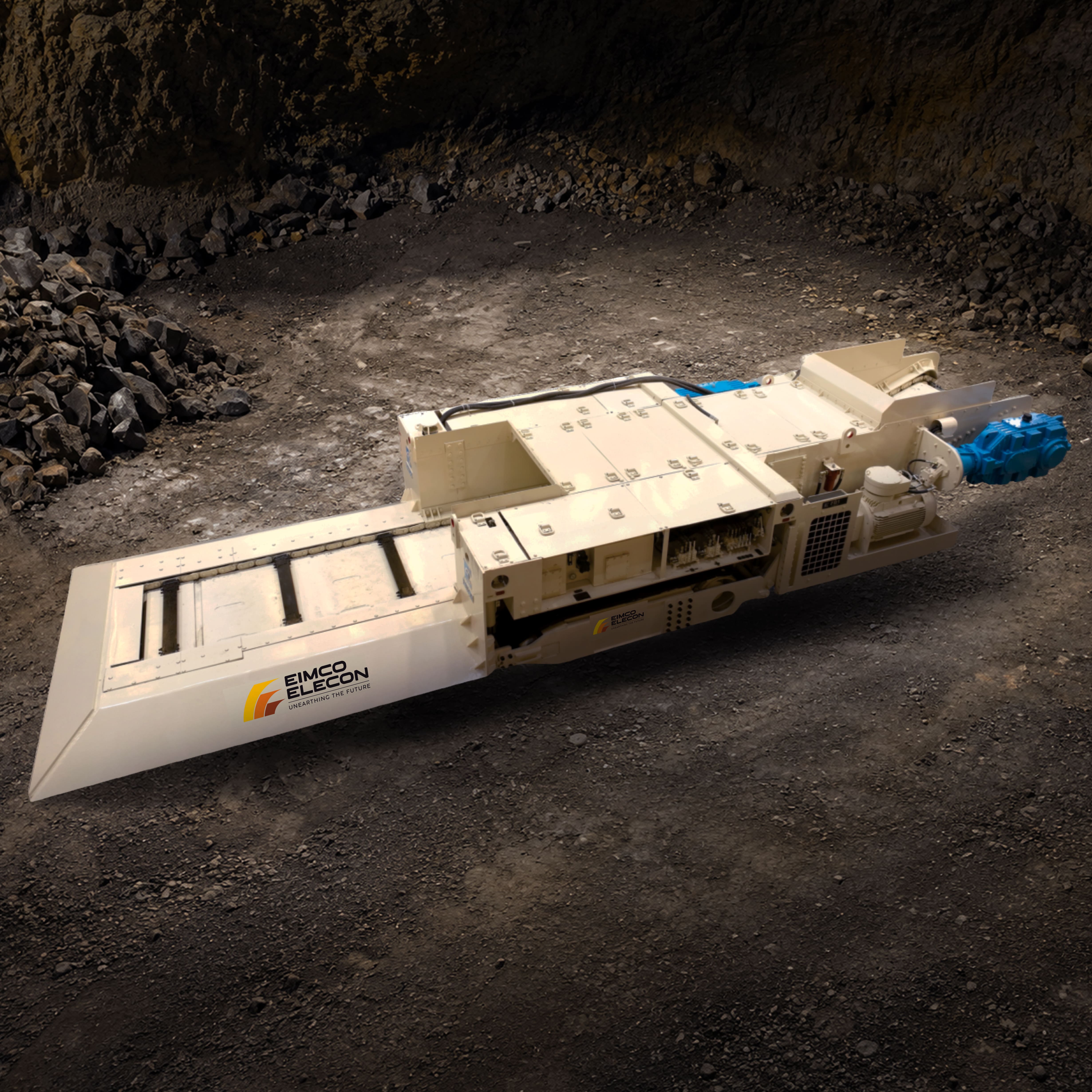

Eimco Elecon Feeder Breaker is a robust and efficient underground mining machine designed for controlled material feeding, crushing, and conveying in coal mining operations. Built for tough underground conditions, the Feeder Breaker helps reduce oversized coal, regulate material flow, and transfer coal smoothly to the conveyor system.



With rugged construction, reliable performance, and operator-friendly design, Eimco Elecon Feeder Breaker improves productivity, safety, and material handling efficiency in mechanized underground coal mining.



It is an ideal solution for mines looking for durable feeder breaker equipment, underground coal crushing machinery, and reliable mining material handling systems.

Engine Power
Engine Power207kw
Operating Weight
Operating Weight36000 Kg
Voltage
Voltage1100 V
Engine Type
Engine TypeElectro Hydraulic
Engine Model
Engine ModelElectro Hydraulic Operated
Max Speed
Max Speed24.5 m/min conveyor chain speed
Loading Capacity
Loading Capacity660-960 t/h (Output)
Hopper Capacity
Hopper Capacity14 CuM
Special Features
Special FeaturesROM coal with high percentage of rock contents
Overall Dimension
Overall Dimension10716 mm x 3200 mm x 1310 mm
