Coal Mining

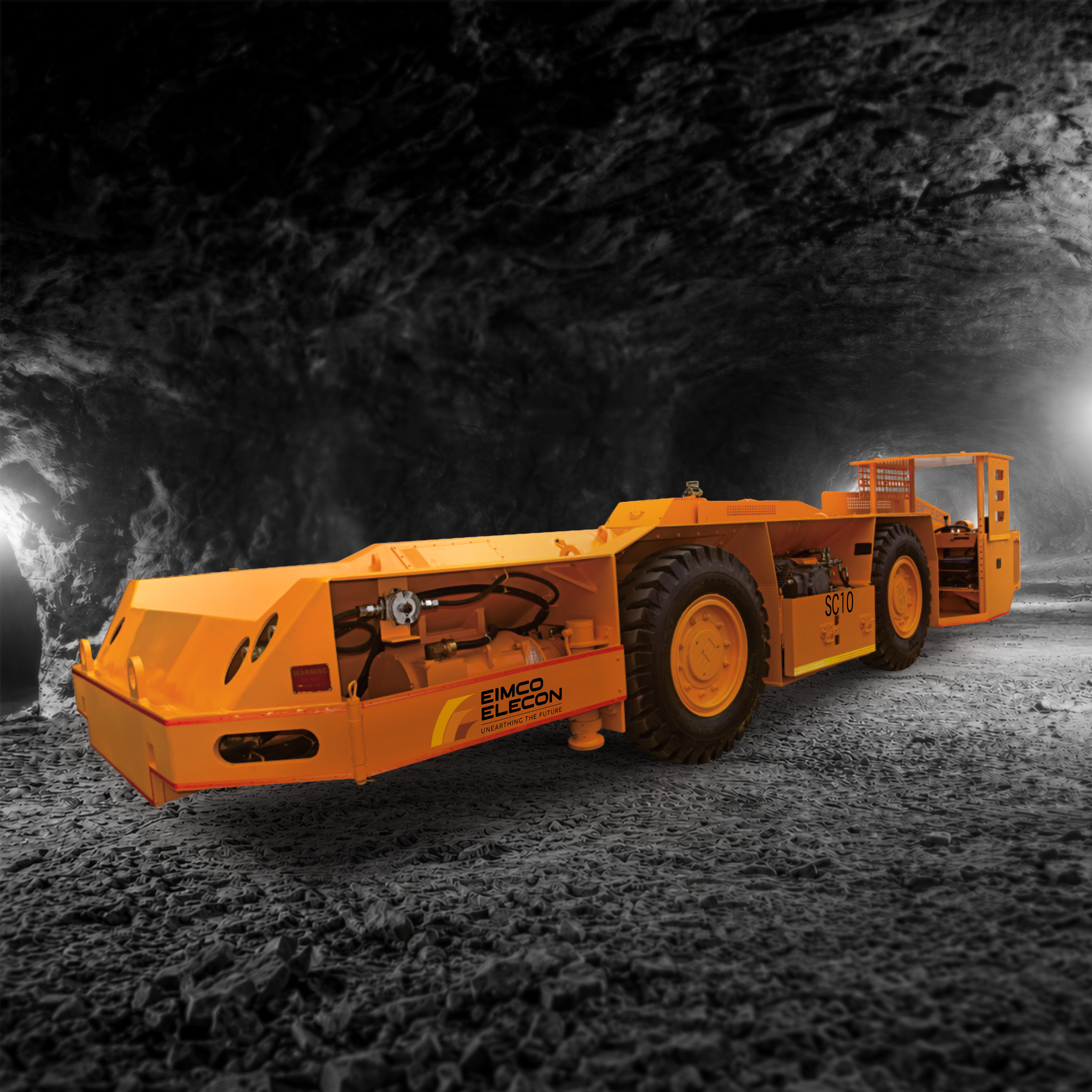

Shuttle Car

Eimco Elecon Shuttle Car is a reliable underground mining machine designed for efficient coal transportation from the mining face to the conveyor or feeder breaker.



Built for demanding underground coal mining conditions, the Shuttle Car offers high load-carrying capacity, smooth maneuverability, rugged construction, and dependable performance in continuous mining operations.



 Engineered to improve productivity, safety, and material handling efficiency, Eimco Elecon Shuttle Car is an ideal solution for mines looking for durable underground coal haulage equipment, mining transport machinery, and high-performance shuttle car systems.

Engine Power
Engine Power2 X55 kW Traction Power, Total Install Power 150 kW
Operating Weight
Operating Weight24000 Kg
Voltage
Voltage1100V
Engine Type
Engine TypeElectro Hydraulic
Engine Model
Engine ModelElectro Hydraulic Operated
Payload Capacity
Payload Capacity14000 kg
Bucket Options
Bucket Options12Ton Low Height
Max Speed
Max Speed6 km/h
Cable Reel Capacity
Cable Reel Capacity175 meter
Special Features
Special FeaturesHeavy duty and robust material frame and proven
Overall Dimension
Overall Dimension9160 mm x 3620 mm x 1500-1900 mm

FEATURES

  • DC drive electronic system integrates electrical, software, electronic, and mechanical systems for stable performance.

APPLICATIONS

Coal Mining
