Coal Mining

611 – Side Dump Loader

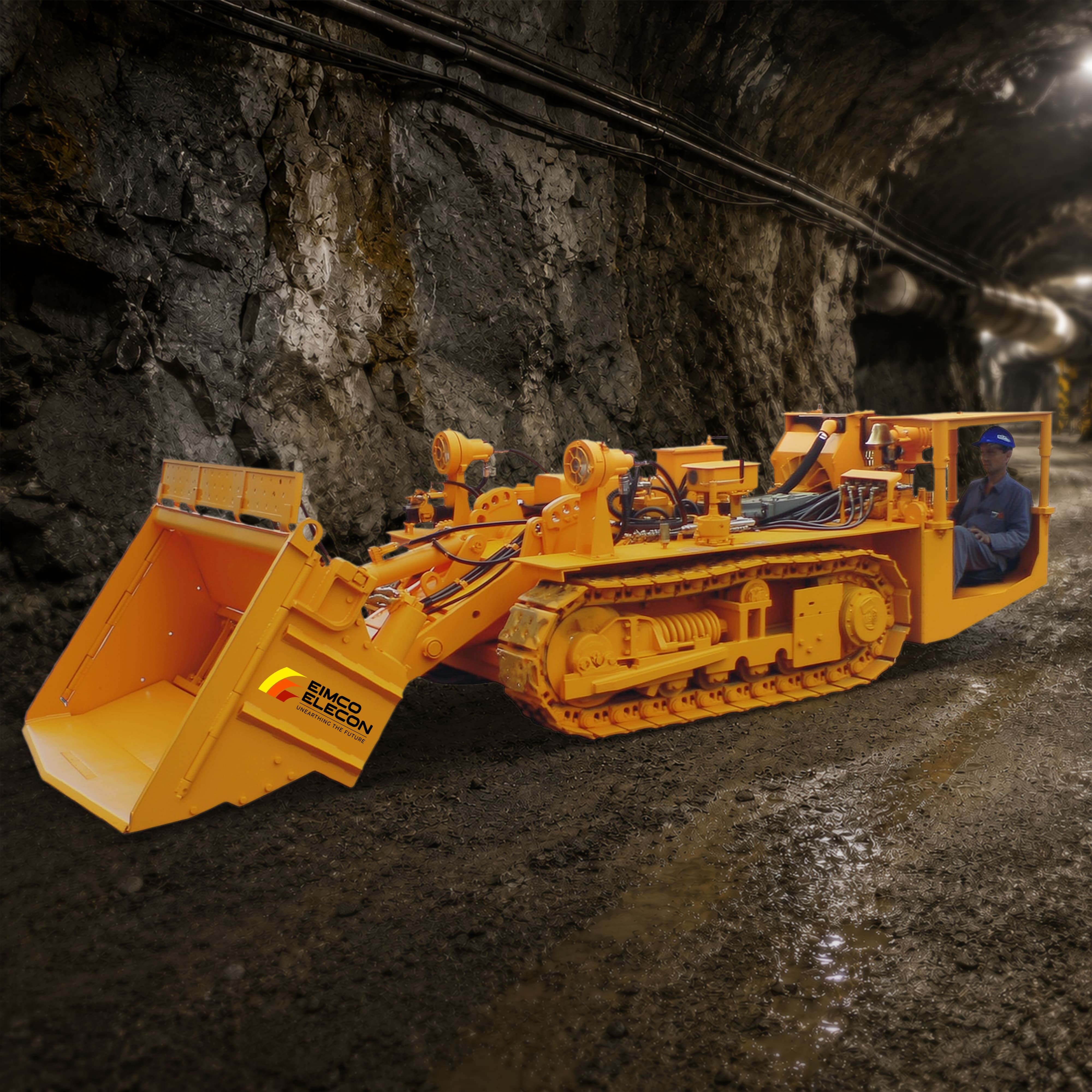

Eimco Elecon 611 SDL is a durable and efficient Side Dump Loader designed for underground coal mining and material handling operations. Built for tough mining conditions, the 611 SDL helps improve loading efficiency, maneuverability, and productivity in confined underground spaces.



Its rugged structure, powerful hydraulic system, reliable drive performance, and operator-friendly controls make it suitable for continuous underground loading applications.



Eimco Elecon 611 SDL is an ideal solution for mines looking for dependable Side Dump Loaders, underground coal loading machines, SDL mining equipment, and high-performance material handling machinery.

Engine Power
Engine Power48 kW
Operating Weight
Operating Weight9000 Kg
Voltage
Voltage550 V
Engine Type
Engine TypeElectro Hydraulic
Engine Model
Engine ModelElectro Hydraulic Operated
Payload Capacity
Payload Capacity2000 kg
Bucket Capacity
Bucket Capacity1.1 m³
Bucket Capacity
Bucket Capacity1.1 m³
Bucket Options
Bucket Options0.75 CuM option
Breakout Force
Breakout Force2700 Kg
Max Speed
Max Speed3.5 km/h
Cable Reel Capacity
Cable Reel Capacity90 meter
Special Features
Special FeaturesWith or Without Cable Reel
Overall Dimension
Overall Dimension5850 mm x 1770 mm x 1350-1500 mm

FEATURES

  • Real low-height machine, capable of operating in seams as low as 1.2 m.

APPLICATIONS

Coal Mining
