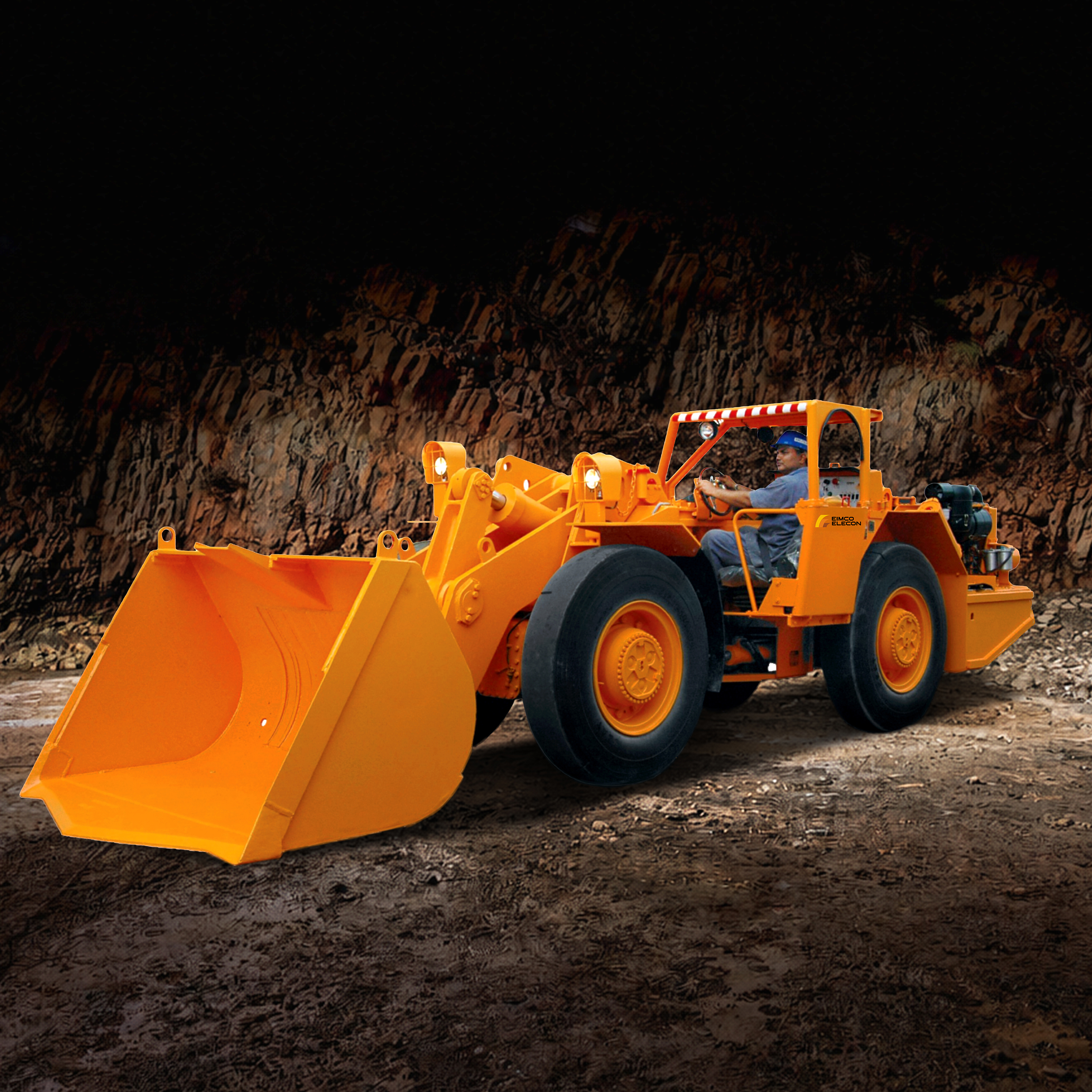

912B MK II – Load Haul Dumper

Eimco Elecon 912B LHD is a reliable Load Haul Dump machine designed for efficient underground mining operations, especially in coal and soft rock mining environments.



Built with a rugged structure, strong maneuverability, and dependable performance, the 912B LHD helps improve material handling, loading, hauling, and dumping efficiency in confined underground conditions.



Its heavy-duty design supports stable operation, easy maintenance, and long service life, making it a suitable choice for mines looking for durable underground mining equipment, LHD machines, and high-performance load haul dump solutions.



Engineered for productivity and operational safety, the Eimco Elecon 912B LHD is ideal for demanding mining applications where strength, reliability, and efficiency are essential.

Engine Power
Engine Power90 kW
Operating Weight
Operating Weight10600 kg
Torque
Torque550 Nm
Engine Type
Engine TypeDiesel
Engine Model
Engine ModelDeutz TCD 3.6 L4F
Payload Capacity
Payload Capacity4000 kg
Bucket Capacity
Bucket Capacity2.0 m³
Bucket Options
Bucket OptionsEject-o-Dump
Breakout Force
Breakout Force6700 Kg
Max Speed
Max Speed27 kmph
Special Features
Special FeaturesTipping: 6640 KG
Overall Dimension
Overall Dimension7602 mm x 1900 mm x 2069 mm

FEATURES

  • Payload - 4000 Kgs

APPLICATIONS

Metal mining
