Coal Mining

811 – Load Haul Dumper

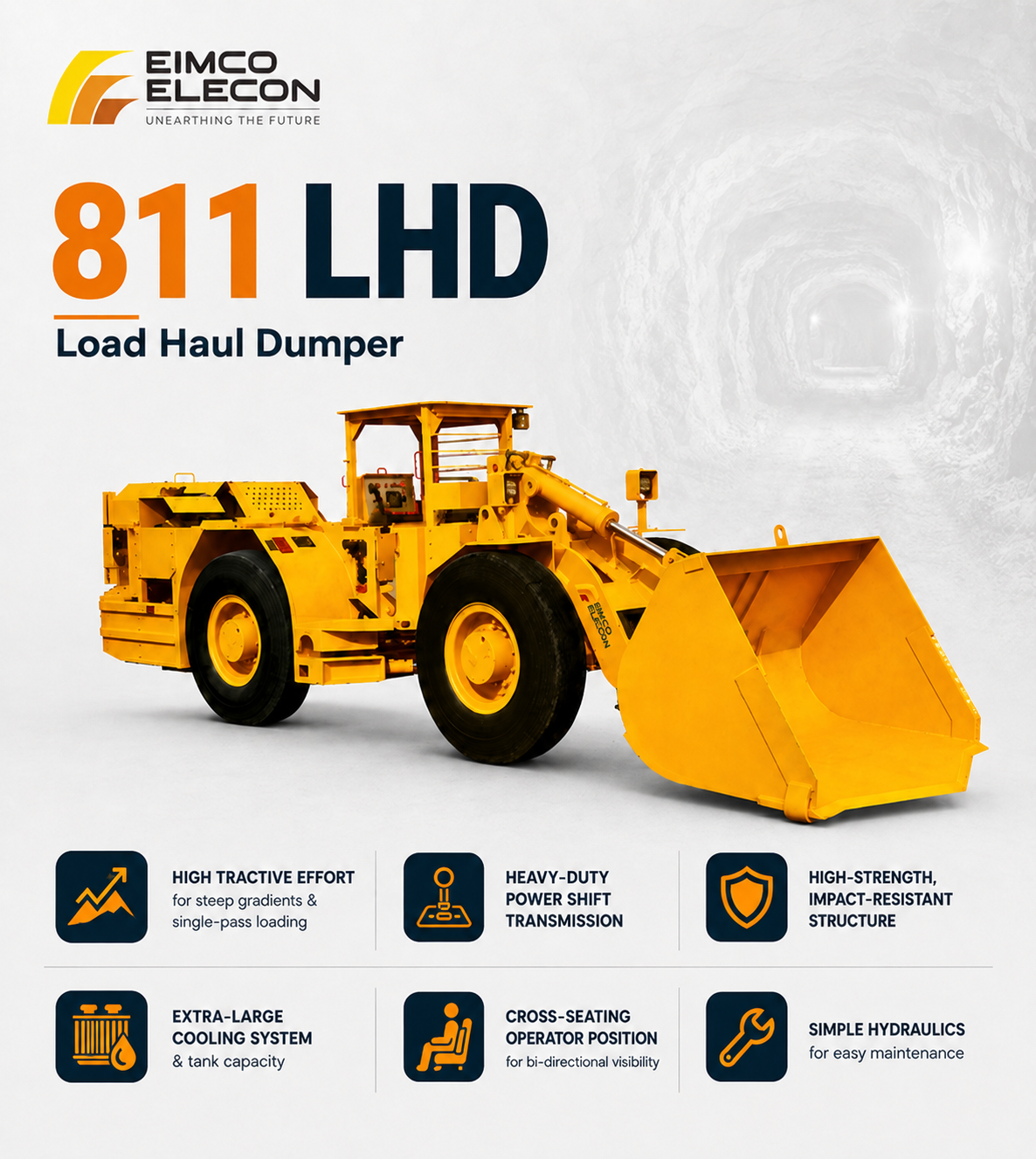

Eimco Elecon 811 LHD is a compact and powerful underground mining machine designed for efficient loading, hauling, and dumping operations in narrow and demanding mining conditions.



Built for reliability, maneuverability, and high productivity, the 811 LHD helps improve material handling efficiency in underground coal and hard rock mining applications. Its rugged structure, hydraulic operation, operator-friendly controls, and durable drive system make it suitable for continuous underground mining performance.



Eimco Elecon 811 LHD is an ideal solution for mines looking for dependable Load Haul Dump machines, underground mining equipment, LHD loaders, and high-performance material handling machinery.

Engine Power
Engine Power37.5 kW
Operating Weight
Operating Weight8900 Kg
Voltage
Voltage550 V
Engine Type
Engine TypeElectro Hydraulic
Engine Model
Engine ModelElectro Hydraulic Operated
Payload Capacity
Payload Capacity2250 Kg
Bucket Capacity
Bucket Capacity1.5 m³
Bucket Options
Bucket Options1.5 Cum and 0.9 C.um Rock bucket
Breakout Force
Breakout Force3630 Kg
Max Speed
Max Speed8 km/h
Cable Reel Capacity
Cable Reel Capacity120 meter
Special Features
Special Featurescable remote control system
Overall Dimension
Overall Dimension7055 mm x 1580 mm x 1950-2000 mm

FEATURES

  • High tractive effort enables the machine to work efficiently on steep gradients and support single-pass loading.
