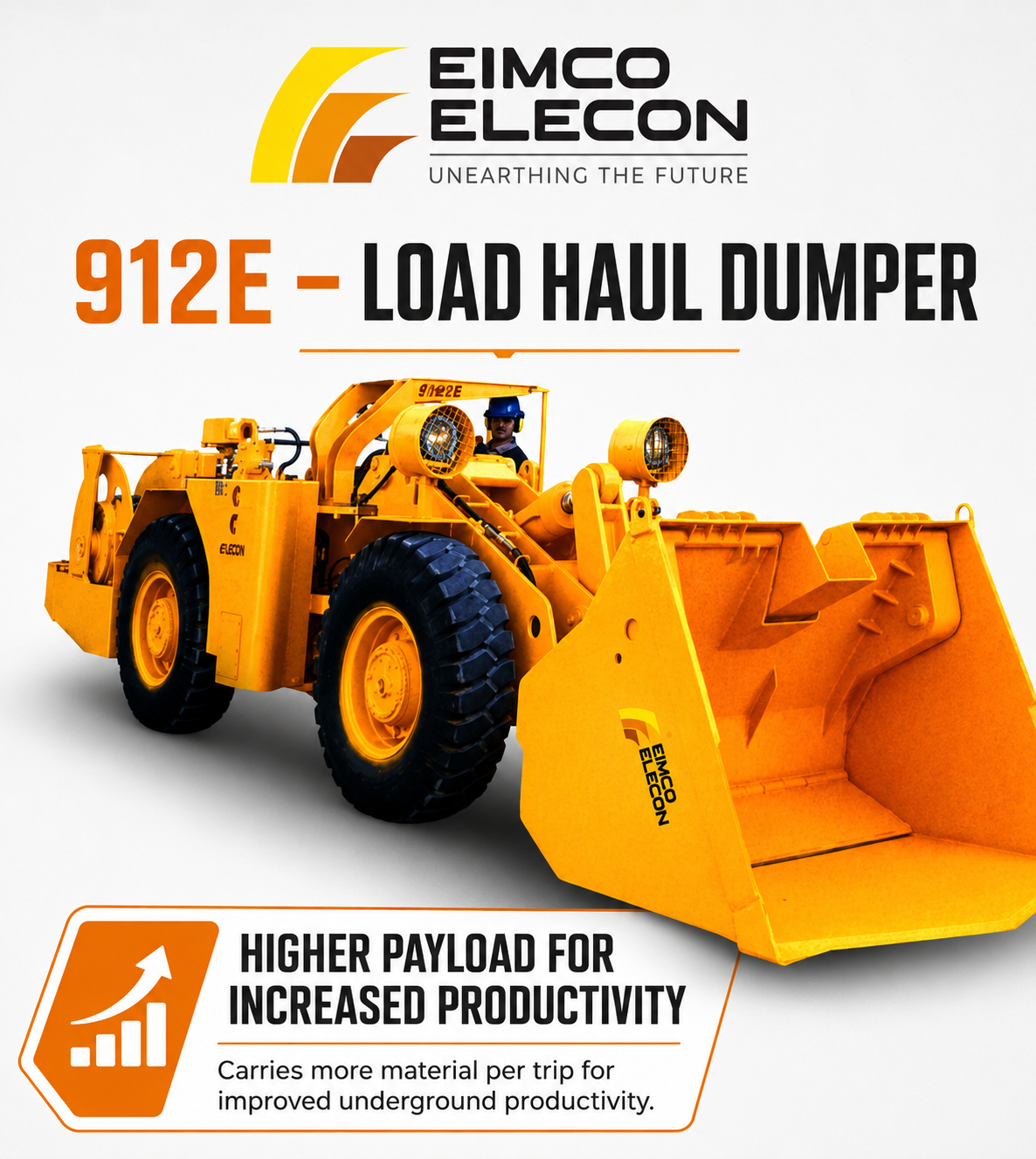

912E – Load Haul Dumper

Eimco Elecon 912E – Load Haul Dumper is a powerful underground mining machine designed for efficient loading, hauling, and dumping in demanding coal mining applications. Built for high productivity and reliable performance, the 912E LHD helps improve material handling efficiency in underground mining operations.

Engineered with higher payload capacity, strong tractive effort, and high breakout force, the Eimco Elecon 912E supports efficient single-pass loading and smooth operation on steep gradients. Its fingertip controls help reduce operator fatigue while improving safety and productivity during continuous underground operations.

With a high-strength, impact-resistant structure and no-spin differential on both axles, the 912E Load Haul Dumper is built to perform in tough underground conditions. It is an ideal choice for mining operations looking for a durable, productive, and operator-friendly LHD machine for underground material movement.

Engine Power
Engine Power75kW
Operating Weight
Operating Weight13800 Kg
Voltage
Voltage550 V
Engine Type
Engine TypeElectro Hydraulic
Engine Model
Engine ModelElectro Hydraulic Operated
Payload Capacity
Payload Capacity4000 Kg
Bucket Capacity
Bucket Capacity3 m³
Bucket Options
Bucket OptionsBi‑directional chain conveyor type 2.0 m³/2.5 m³/3.0 m³ ,Front tip or push plate type 2.7 m³/ 3.0 m³ (SAE heaped) Front tip or push plate type 1.6 m³/2.0 m³
Breakout Force
Breakout Force6700 Kg
Max Speed
Max Speed8 km/h
Cable Reel Capacity
Cable Reel Capacity120 meter
Special Features
Special Featurescable remote control system
Overall Dimension
Overall Dimension8144 mm x 1775 mm x 2115 mm

FEATURES

  • Higher payload for increased productivity.

APPLICATIONS

Coal Mining

Coal Mining
